Kostanjek landslide

LCI : HRV1609131026
Main Information
Landslide Name : Kostanjek landslide
Latitude : 45:49:20 N
Longitude : 15:51:24 E
Location
City / District : Zagreb
Province : City of Zagreb
Country : Croatia (Hrvatska)
Reporter
Reporter 1 : Martin Krkac
Reporter 2 : Snjezana Mihalic Arbanas
Landslide Type
Material : Earth
Movement : Slide
Velocity (mm/sec) : Very Slow
Depth (m) : Deep
Slope (degree) : Gentle
Volume (m³) : Large
Date of Occurence
Date of Occurence : Dec 02, 1963
Other Information
Land Use Source area : Urban area
Run-out/deposition area : Urban area, Industrial use
Other Activity : Currently active
Triggering Factor : Human activity and rainfall
Death(s) & Missing : -
Houses and other structural damage : 50
Photo of landslide :
Google earth kmz file : Kostanjek landslide1479295466.kmz

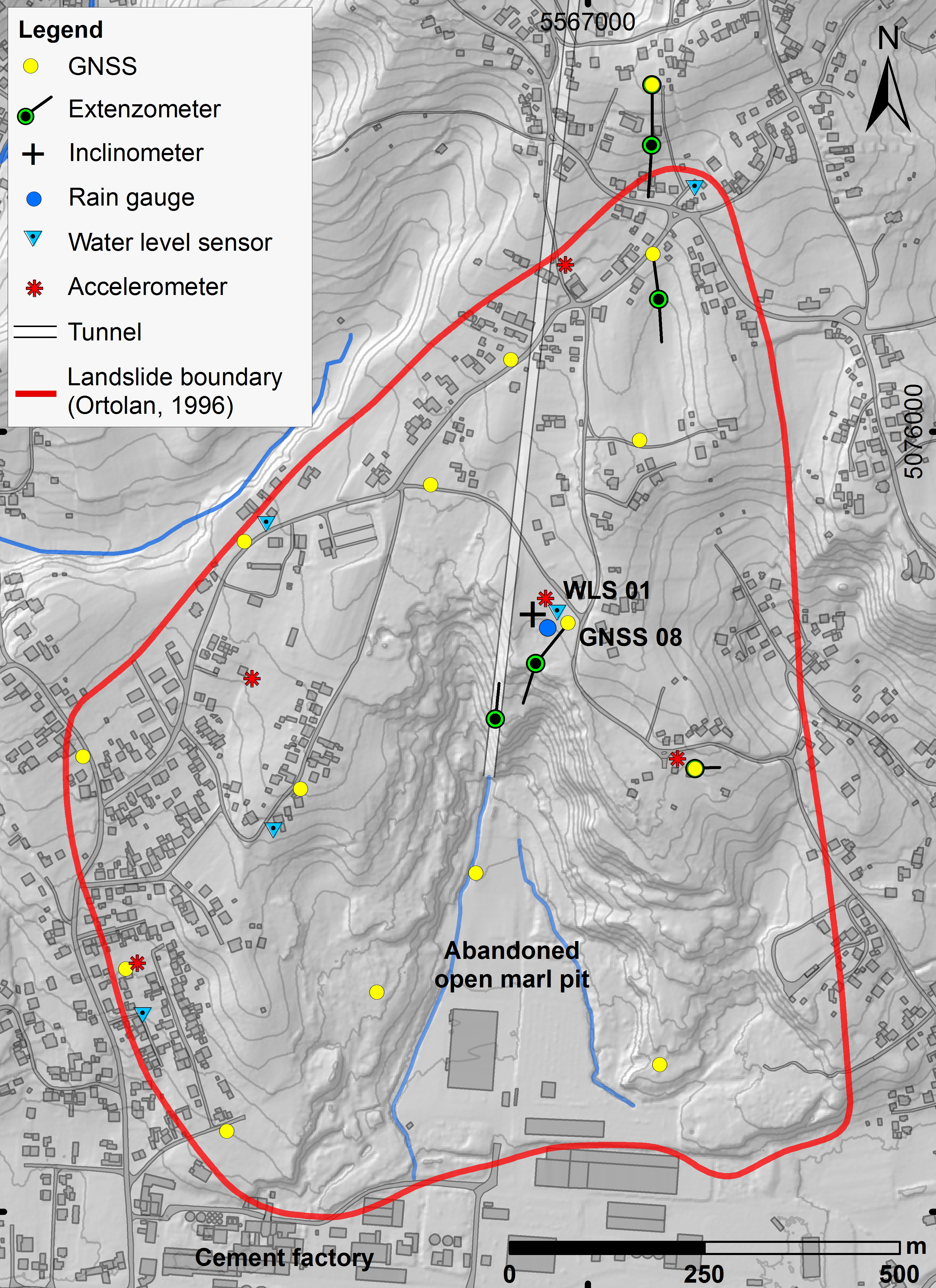

Plan of landslide :

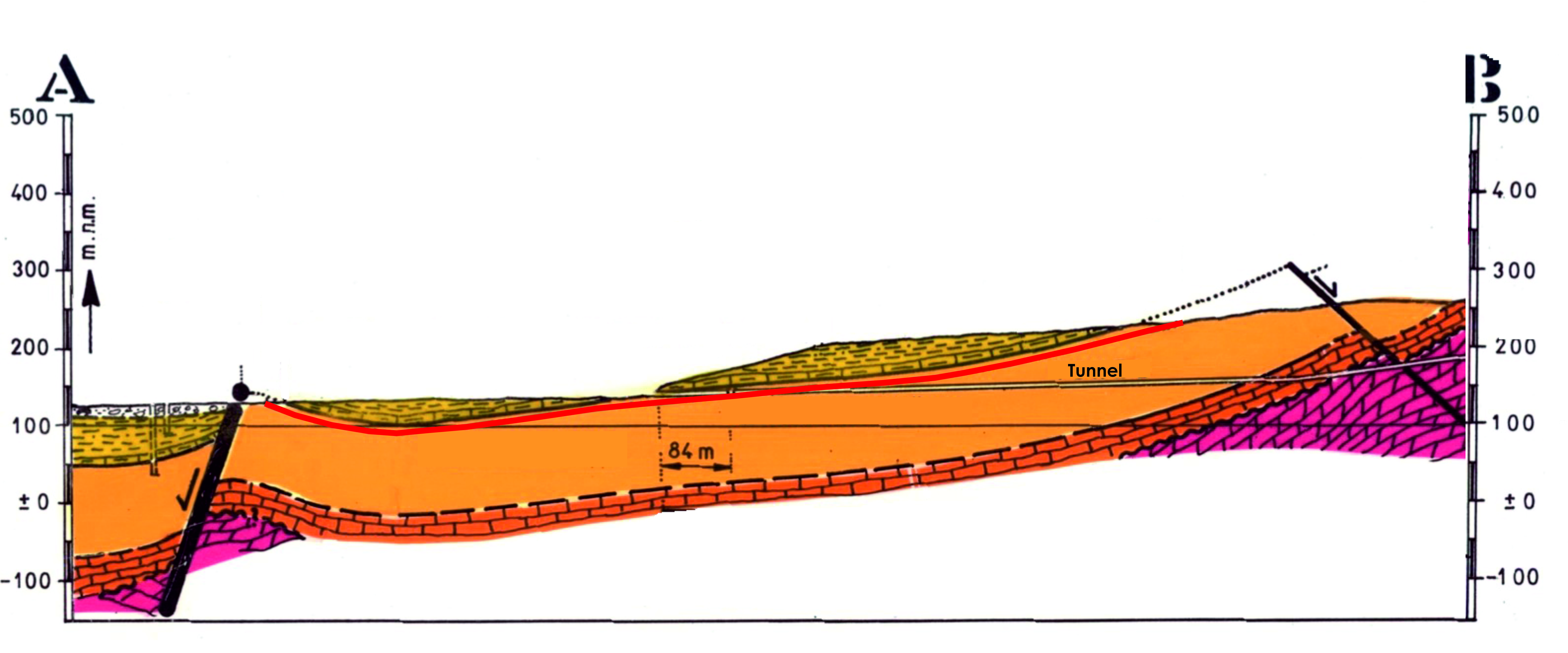

Cross section of landslide :
Reference (paper/report) : http://link.springer.com/article/10.1007/s10346-016-0761-z

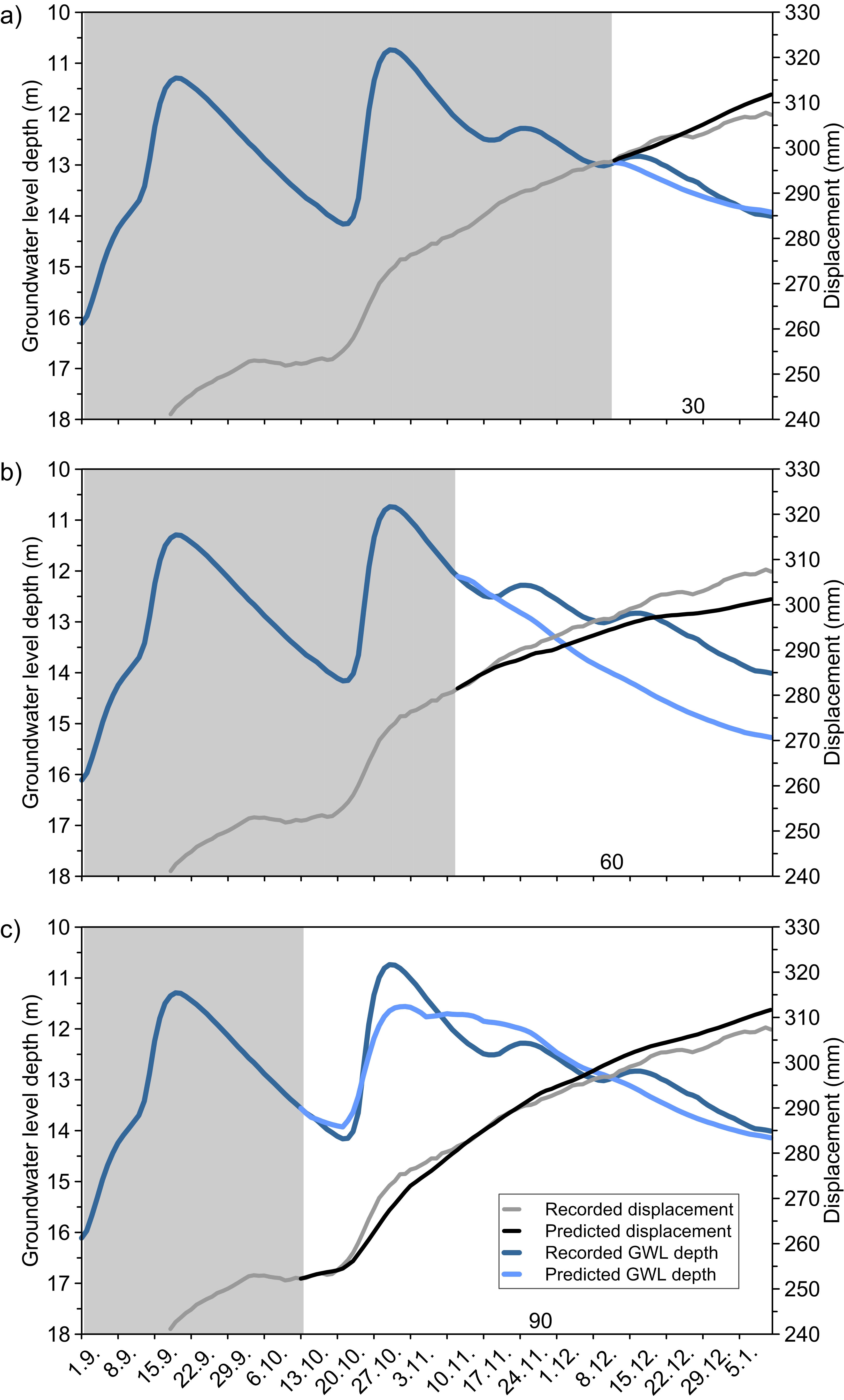

Testing graph :

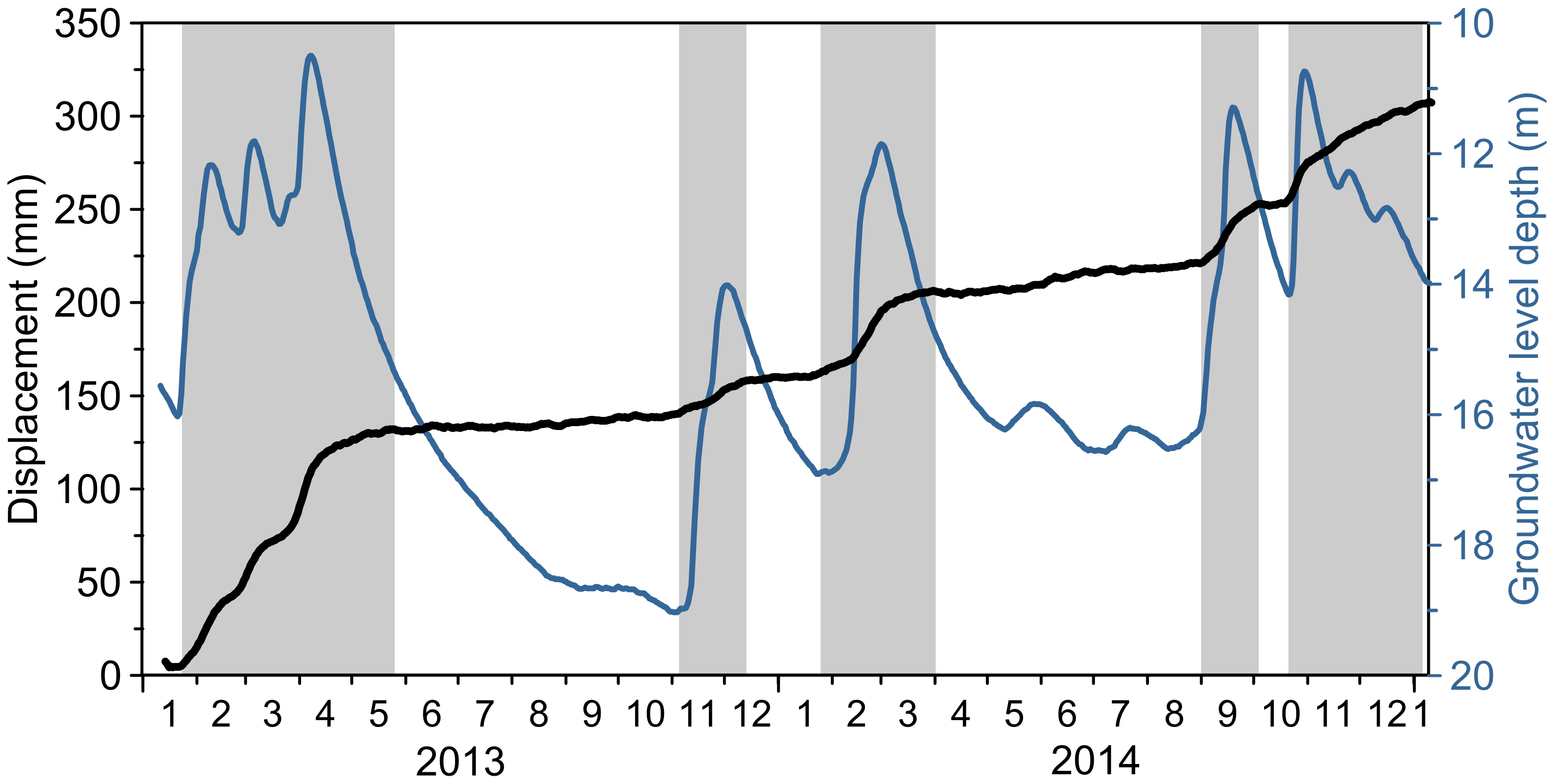

Monitoring graph :
Video of moving landslides including 3D simulation : -
Description :

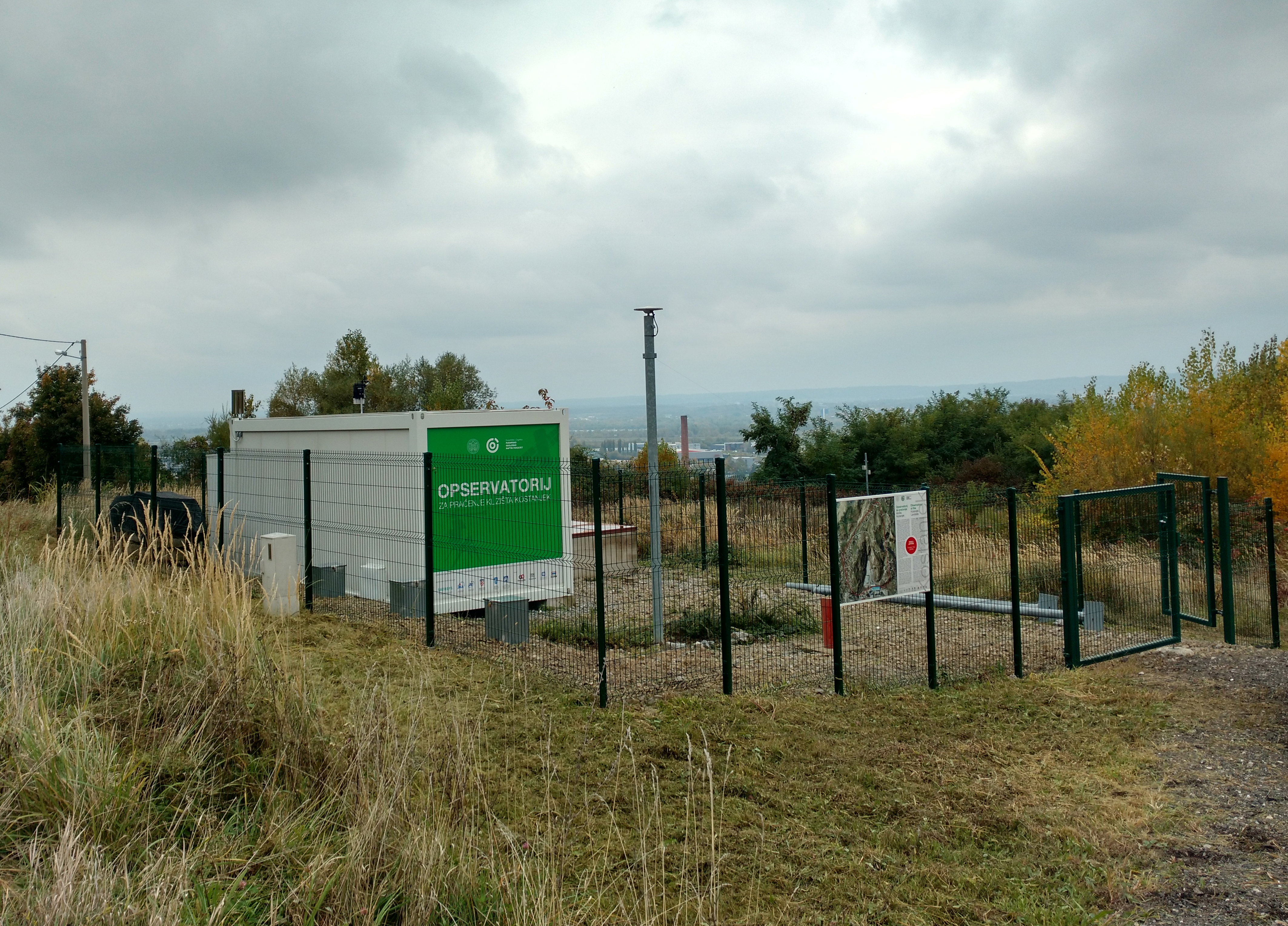

The Kostanjek landslide is the largest landslide in the Republic of Croatia. It is located in the western part of the City of Zagreb, in residential area at the base of the southwestern slope of Mt. Medvednica. The landslide was mainly caused by anthropogenic factors, including mining and excavation in a marl quarry for cement production at the toe part of the landslide and blasting in a limestone quarry placed on the north of the upper part of the landslide. It is a deep-seated large translational landslide formed in soft rock-hard soil, i.e., Pannonian and Sarmatian marls. The landslide extends over an area of approximately 1.2 km2 with a total volume of displaced mass of 32.6 x 106 m3. The maximal depth of the sliding surface is 90 m. Since its activation in 1963, this landslide has caused substantial damage to buildings and infrastructure in the residential zone as well as to factories and commercial buildings. On Kostanjek landslide during the 2011-2013, within the frame of Japanese-Croatian SATREPS FY2008 project ‘Risk Identification and Land-Use Planning for Disaster Mitigation of Landslides and Floods in Croatia’, a monitoring system was established for the purpose of early warning system. The installed monitoring system consists of multiple sensor networks for the measurement of (1) external triggers (a rain gauge, a meteorological station and 7 accelerometers), (2) displacement/deformation/activity (15 GNSS sensors, 7 extensometers, 4 borehole extensometers and an inclinometer), and (3) hydrological properties (3 pore pressure gauges and 5 water level sensors in boreholes and domestic wells, and 2 water level sensors at outflow weirs).
